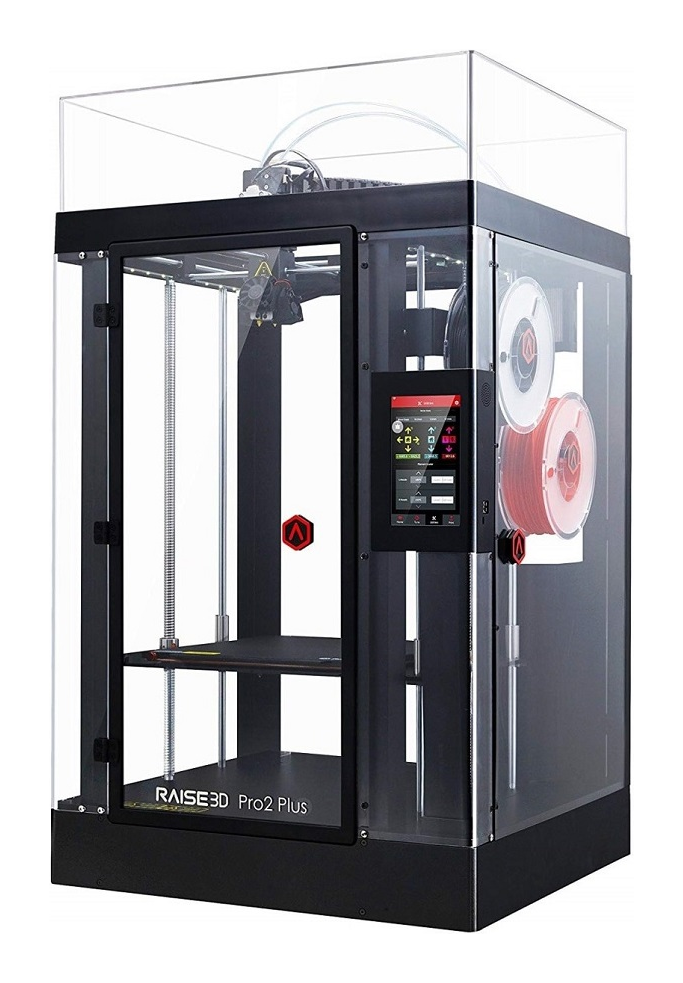

3D printer Raise3D Pro2 Plus
The Raise3D Pro2 Plus 3D printer has a number of design differences and a truly large work area, thanks to which it will be possible to produce large objects and small batches of products at a consistently low cost. The print bed is made of aluminum and new advanced materials that properly dissipate heat and, in combination with the closed chamber design, allow you to work with a variety of plastics. A dual extruder with fast switching between nozzles, electronic drive lift and optical filament end sensor opens up unlimited possibilities for color printing and printing objects from materials with different characteristics. The device is equipped with an air filter for safe printing, which absorbs 91% of harmful volatile substances, one way or another, released when working with thermoplastic elastomers, polycarbonate, etc. Position control with industrial-grade components and a self-contained motor driver takes FDM printing quality to the next level, making it exponentially more accurate and detailed. And the function of resuming printing after a power outage or interruption reduces the likelihood of defects to nothing. For user convenience and reducing downtime in production, the printer is equipped with a wireless control system - Wi-Fi and a built-in online video camera, which allows you to always clearly monitor all stages of work and change settings in a timely manner. High-quality components combined with improved functionality give this device an undeniable advantage over its predecessors and make it an ideal tool for both small and large industries. A wide range of plastic filaments are suitable for working with the Raise3D Pro2 Plus 3D printer: ABS, PLA, PVA, FLEX, TPV, TPE, Nylon, HIPS, PP, Wood, Bronze, etc. The Raise3D Pro2 Plus 3D printer is designed for industrial use and is aimed at small-scale production. In addition, the expanded printing area and large selection of materials open up the possibility of constructing large objects that are used in mechanical engineering, aviation, construction, landscape design, and architecture. In addition, the device can be used in areas such as medicine, the production of photographic and video equipment, laboratory equipment, the production of shoes, furniture and interior items, in engineering laboratories, design bureaus, research and educational institutions. Suitable for use in companies that seek to optimize and reduce the cost of the production process through 3D printing of prototypes, layouts, master models and other products. The device is equipped with a 7-inch touch screen with a visual full-color interface for quick viewing, display and full control of all printing parameters and processes. Also, to control the process, the printer is equipped with a built-in online video camera that transmits data in real time. The 3D printer comes with IdeaMaker software, which allows you not only to prepare 3D models for printing and turn them into an .obj file, but also to control the operation of the printer using mobile devices. The device is equipped with a USB port and supports a Wi-Fi connection, which makes it possible to work autonomously without connecting to a computer.
- Printing technology: FFF
- Printing Material: Plastic Filament
- Supported materials: ABS, BF Bronze, Carbon, FLEX, HIPS, Nylon, PC, PETG, PLA, PP, PVA, TPE, TPU, Wood
- Printing area, mm: 305x305x605 – when printing with one extruder; 280x305x605 – when printing with two extruders.
- Number of print heads: 2
- Layer thickness, microns: 10
- Positioning accuracy along the XY axis, mm: 0.078125
- Positioning accuracy along the Z axis, mm: 0.078125
- Nozzle diameter, mm: 0.4
- Thread diameter, mm: 1.75
- Printing speed, mm/s: 30-150
- Extruder temperature, °C: Up to 300
- Platform: Aluminum heated with magnetic holders
- Platform temperature, °C: Up to 110
- Connection interface: LAN, USB, Wi-Fi
- Software: IdeaMaker
- Operating system: iOS, Linux, Windows
- Supported file formats: STL, OBJ
- Network: Ethernet 802.11 b/g/n, Wi-Fi 2.4 GHz/5 GHz
- Ports: SD card*1, USB 2.0*2, Ethernet*1
- Position Control Unit: 400MHz ARM Cortex-M7 32bit RISC FPU
- Logic controller: Freescale imx6, Quad core 1 GHz ARM processor
- Memory: 1 GB, built-in flash memory 8 GB
- Display: TouchScreen 7
- Control system: Online video camera
- Noise level, dB: 50
- Housing material: Aluminum
- Power supply: 110-240V, 600W
- Weight (without packaging), kg: 52
- Dimensions (without packaging), mm: 616х590х1107
