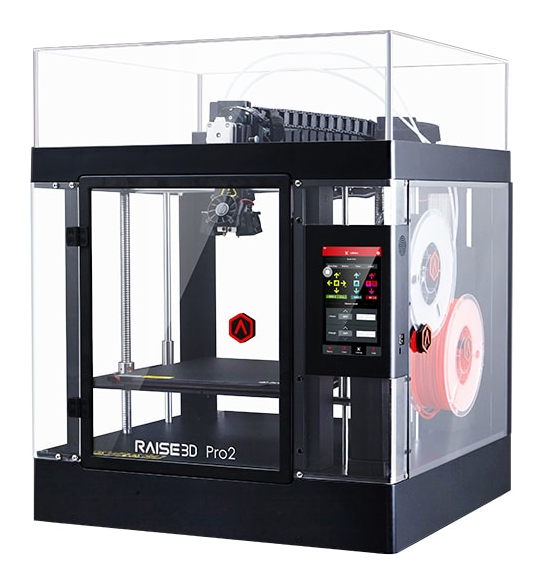

3D printer Raise3D Pro2
The Raise3D Pro2 3D printer is a new industrial-grade model designed specifically for small-scale production and the organization of 3D printed farms. The printer is equipped with a dual extruder with an electronic lifting drive to work with two materials at once, making color printing possible and the creation of objects with different physical characteristics. Quick switching between extruders (less than a second), an optical filament end sensor and interchangeable nozzles of different diameters guarantee accurate layering without gaps. The large working area allows you to print fairly large objects without gluing, as well as figures of complex geometry with a large number of supports. The closed chamber design and heated aluminum platform provide a huge choice in the use of printing materials. The air filter absorbs more than 91% of harmful substances, which makes printing safe. Improvements have also significantly affected the kinematics - the printer has acquired position control with industrial-grade components and a stand-alone motor driver, making print quality and detail much higher. The resume printing function allows you to save printing results during interruptions and power outages, and wireless control of all processes and monitoring using a built-in online video camera makes the work autonomous. Raise3D Pro2 prints with a large number of plastic filaments: ABS, PLA, PVA, FLEX, TPV, TPE, Nylon, HIPS, Wood, Bronze, etc. Bronze filament consists of almost 80% bronze powder, so it is heavier than conventional polymer filaments. If you need to create a figure reminiscent of metal, then this plastic will reproduce the heaviness of the metal, its shine and color. PLA is made from biodegradable and non-toxic corn starch. Proven to be free of diethylhexyl phthalate (DEHP) and heavy metals through rigorous testing. Parts made from it do not crack during printing and do not bend. No unpleasant odor, safe for humans and the environment. Widely used for the manufacture of implants, safe packaging, children's toys, disposable tableware, and personal hygiene products. High-precision product prototypes are printed easily and quickly, and most importantly, very accurately. Versatility in the choice of consumables significantly expands the horizons of prototyping. In addition, the device is applicable in many fields. For example, it is effective in implementing projects of architectural bureaus, art workshops, and interior design studios. With its help, it is possible to create and develop models of structures, construction projects, and landscape plans. In education, this is an opportunity to gain skills and experience in 3D printing and create visual aids. Great for those who work in dentistry, surgery and other fields of medicine, because creating prosthetics, models of any body parts and devices for its research is now so easy. The device is equipped with a 7-inch touch screen with a visual full-color interface for quick viewing, display and full control of all printing parameters and processes. Also, to control the process, the printer is equipped with a built-in online video camera that transmits data in real time. The 3D printer comes with IdeaMaker software, which allows you not only to prepare models for printing and turn them into .obj files, but also to control the operation of the printer using mobile devices. The device is equipped with a USB port and supports a Wi-Fi connection, which makes it possible to work autonomously without connecting to a computer.
- Printing technology: FFF
- Printing Material: Plastic Filament
- Supported materials: ABS, BF Bronze, Carbon, FLEX, HIPS, Nylon, PC, PETG, PLA, PP, PVA, TPE, TPU, Wood
- Printing area, mm: 305x305x300 – when printing with one extruder; 280x305x300 – when printing with two extruders
- Number of print heads: 2
- Layer thickness, microns: 10
- Positioning accuracy along the XY axis, mm: 0.078125
- Positioning accuracy along the Z axis, mm: 0.078125
- Nozzle diameter, mm: 0.4
- Thread diameter, mm: 1.75
- Printing speed, mm/s: 30-150
- Extruder temperature, °C: Up to 300
- Platform: Aluminum heated with magnetic holders
- Platform temperature, °C: Up to 110
- Connection interface: LAN, USB, Wi-Fi
- Software: IdeaMaker
- Operating system: iOS, Linux, Windows
- Supported file formats: STL, OBJ
- Network: Ethernet 802.11 b/g/n, Wi-Fi 2.4 GHz/5 GHz
- Ports: SD card*1, USB 2.0*2, Ethernet*1
- Position Control Unit: 400MHz ARM Cortex-M7 32bit RISC FPU
- Logic controller: Freescale imx6, Quad core 1 GHz ARM processor
- Memory: 1 GB, built-in flash memory 8 GB
- Display: TouchScreen 7
- Control system: Online video camera
- Noise during operation, dB: 50
- Housing material: Aluminum
- Power supply: 110-240V, 600W
- Weight (without packaging), kg: 44
- Dimensions (without packaging), mm: 620x590x760
