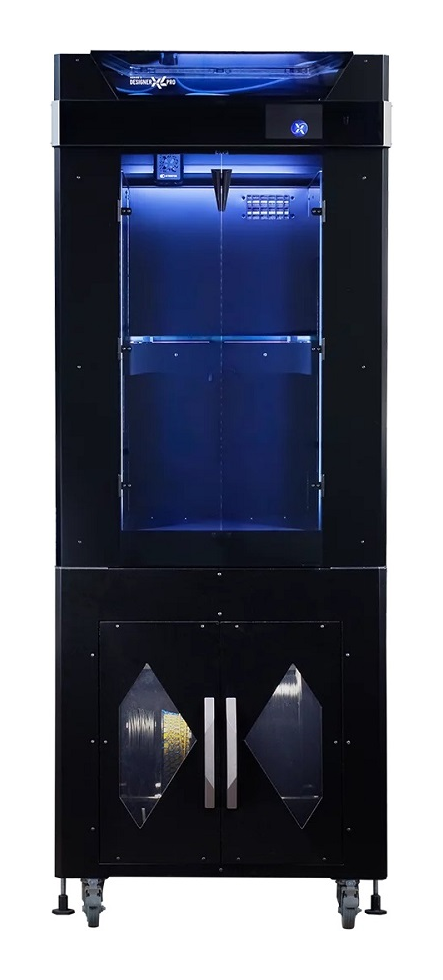

3D Printer Picaso Optimum
PICASO 3D Optimum 3D printer is a native combination of a two-nozzle professional XL PRO S2 printer with a Dryer material drying system. This solution offers many key benefits that are essential for optimal performance with engineering and high temperature materials. The solution is equipped with a system of additional feeders that feed the printer’s print head with material directly from the compartment in which the plastic spools are dried/maintained. Thanks to the peculiarities of the solution, additional feeders, unlike their competitors, successfully cope with both fragile and flexible materials. The system is conveniently controlled from the same display as the printer controls.
Price on request
- Printing technology: FDM (FFF)
- Construction area size, mm: 360x360x610
- Number of extruders: 1 (2 nozzles)
- Nozzle diameter, mm: 0.5 mm (0.2-1 mm optional)
- Chamber heating: Yes
- Extruder temperature, °C: 430
- Table temperature, °C: 150
- Printing/growing speed: up to 130 cm³/hour
- Layer thickness: from 0.01 mm
- Display: liquid crystal touch display
- Print bed: Aluminum, glass
- Housing: Closed
- Interfaces: WiFi, Ethernet, USB Flash
- Software: PICASO 3D Polygon X™
- File format: *.stl, *.amf, *.obj, *.3ds, *.plgx, *.gcode, *.ppf, *.plgs, *.plg
- PC Requirements: Windows 7 and later
- Power supply: 220V±15% 50Hz (optional 110V±15% 60Hz)
- Maximum temperature in heated chamber: 90 °C
- Housing material: Aluminum [composite]
- Guides: X-Y Rail, Z Cylindrical (Steel)
- JetSwitch 4 Technology: Yes
- Hot swap technology: Yes
- Nozzle inversion technology: Yes
- First layer control: Yes
- Integrated material profile system: Yes
- Cloud material profile system (when connected to the Internet): Yes
- Adjustable media settings during printing: Yes
- Automatic nozzle mixing: Yes
- Quick nozzle switching system: Yes
- Printer status alert system: Yes
- Printer auto diagnostics: Yes
- Remote monitoring and control via network: Yes
- Operating power: 600W
- Peak power consumption: 2200 W
- Dryer plastic drying module included: Yes
- Dryer plastic drying control: from the 3D printer display
- Dryer plastic drying power: 700 W
- Number of compartments in Dryer: 2
- Maximum loading of Dryer plastic drying: 2 rolls of 2 kg or 4 of 750 g
- Number of additional feeders (channels) in Dryer plastic drying: 4
- Chamber temperature in Dryer: 130 °C
- Dryer power supply voltage: 220V±15% 50Hz.
- Automatic calibration: Yes
- Filament presence sensor: Yes
- Filament Feed Control Sensor: Yes
- Active cooling system: Yes
- Resume printing after power failure: Yes
- Built-in filament drying system: Yes
- Filament drying temperature, °C: 90 °C
- Warranty: 24 months
- Material type: Polymer thread
- Materials used: ABS, ASA, FLEX, Flex (TPE), Flex (TPU), HIPS, Nylon, PA, PC, PETG, PLA, PMMA, PP, PPS, PS, PVA, RUBBER, SBS, TPU, etc.
- Rod diameter, mm: 1.75
- Support material: PVA, HIPS
- Engineering materials: PA(6/12/66), ABS (GF/CF), PC, TPU (and derivatives), PEEK, PEKK, PPSU, ULTEM
- Dimensions, mm: 650x605x1000
- Weight, kg: 75
