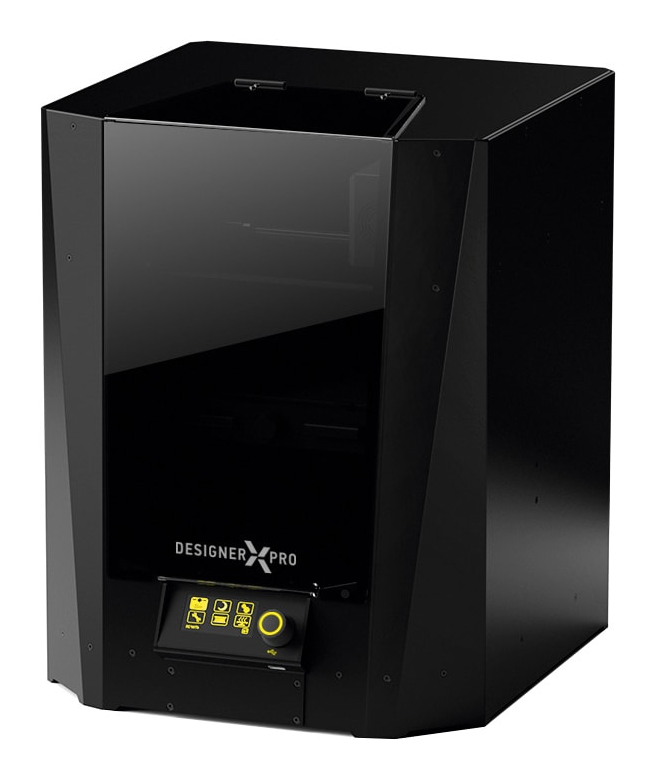

3D printer Picaso Designer X Pro
The Picaso Designer X PRO 3D printer is a modern device for three-dimensional printing, equipped with the company's advanced developments for more accurate and stable operation. Stylish design solutions, high performance and simple controls allow you to achieve high printing results. In the newer model, the extruder moves on rails, since they are installed along both the X and Y axis. Hence, the movement speed and positioning accuracy increase. The model also uses a steel frame on which all mechanisms are installed - the rigidity of the structure has become higher. The printer supports printing in two types of materials. The advanced JetSwitch system for switching between different types of threads saves up to 15 hours of work, which can be spent on making other models. The printer allows you to achieve high print results thanks to the new print head. Switching accuracy down to 1 micron, as well as a rigid steel frame design and hardware platform, make for very high quality printing. Picaso Designer X PRO is equipped with intelligent control systems that automate the operation of the device. Controlling the supply of plastic thread, tracking the first layer, a profile system and other functions allow you to use material economically. The notification system will help monitor the condition of the equipment and inform the user about the status of the problem solution. The 3D printer has a wide range of operating temperatures. This means that you can print with almost any material whose melting point is no more than 380⁰C. A device with built-in networking capabilities can easily become part of your production. You can easily manage one or more printers from one PC and control the process of creating models. A printer using FFF printing technology allows you to create high quality parts. The device is suitable for professional makers, students, small businesses and small production.
- Printing technology: FFF
- Number of extruders: 1
- Number of nozzles: 2
- Printing area, mm: 200x200x210 mm
- Printing speed: up to 100 cm3/hour
- Nozzle Diameter (mm): 0.3mm
- Layer thickness, microns: 10-250 microns (0.1-0.25 mm)
- Positioning accuracy: XY: 11 microns; Z: 1.25 microns
- Diameter of plastic thread: 1.75±0.1mm
- Maximum printing temperature: 410 °C
- Table type: Aluminum, glass
- Maximum table temperature: 150 °C
- Main material: ABS, FORMAX, PLA, ULTRAN 630, ULTRAN 6130, ASA, ABS/PC, PET, PC, FRICTION, CAST, RELAX, ETERNAL, FLEX, RUBBER, SEALANT, PETG, AEROTEX, CERAMO, WAX, SBS, SBS PRO, PROTOTYPER SOFT, PRO-FLEX, TOTAL PRO, NYLON and others
- Housing: Aluminum (composite)
- Frame: Steel
- Guides: XY: rail (steel); Z: cylindrical (steel)
- Additional functions: Plastic supply control system; Control system for the first layer of printing; Profile system; Alert system
- Software: PICASO 3D Polygon X™
- File types: *.stl, *.plg
- Operating system: Windows XP and later versions
- Noise level: 55 dBA
- Interfaces: USB, Ethernet, USB Flash
- Network operation: 220 V±15% 50 Hz, (optional 110 V±15% 60 Hz)
- Maximum power consumption: 400 W
- Printer size: 492x390x430 mm
- Packaged size: 690x500x470 mm
- Weight: 16 kg
- Package weight: 20 kg
