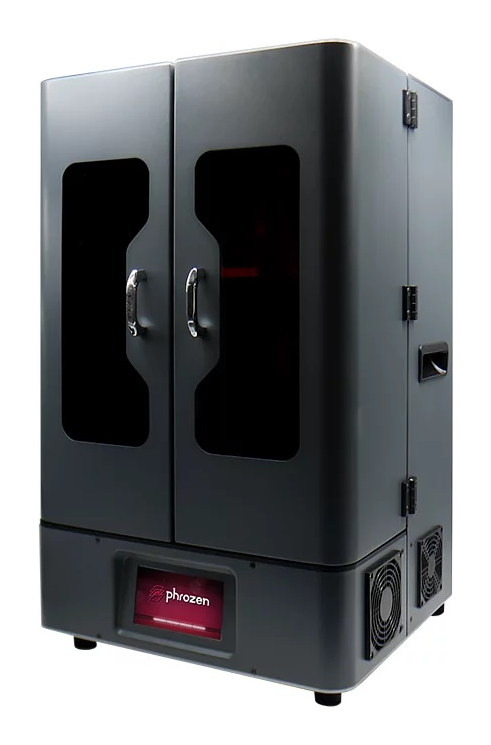

Phrozen Transform Fast 3D Printer
The Phrozen Transform Fast 3D printer is the latest photopolymer printer from a Taiwanese manufacturer, which differs from most models using LCD technology. An important feature of the printer is its own optical module "ParaLED", consisting of an array of ultraviolet-emitting LEDs and focusing lenses. This solution can provide the maximum parallelism of light fluxes possible today. This increases the illumination rate and improves the geometric accuracy of printing. The printer is equipped with a fast LCD adapter that allows you to replace panels in just 30 seconds. With a dual panel setup, users can print on two platforms simultaneously, cutting total production time in half. Each panel has its own printing accuracy. A large panel is suitable for the manufacture of large or medium-sized products. The other is for short-run printing of miniature objects such as jewelry. The printer adopts a rigid Z-axis design. The device uses dual linear rail and ball screw. You can print without connecting to a computer, having USB ports for connecting external storage devices.
- Printing technology: LCD
- Supported materials: Photopolymer
- Printing area, mm: 290x160x400
- Layer thickness, microns: 10-30
- Positioning accuracy along the XY axis, µm: 76
- Positioning accuracy along the Z axis, µm: 10
- Layer exposure time: from 0.2 sec/layer
- Light source: ParaLED 3.0 Module
- Printing speed, mm/hour: 50
- Connection interface: USB, Wi-Fi
- Software: Phrozen OS, Phrozen 3D Powered by Formware
- Supported file formats: PHZ, .ZIP
- Display: 5 inches, Touch Panel
- Power supply: 100-240 V, 50/60 Hz
- Power consumption: 200 W
- Dimensions (without packaging), mm: 380х350х610
- Weight (without packaging), kg: 27.5
