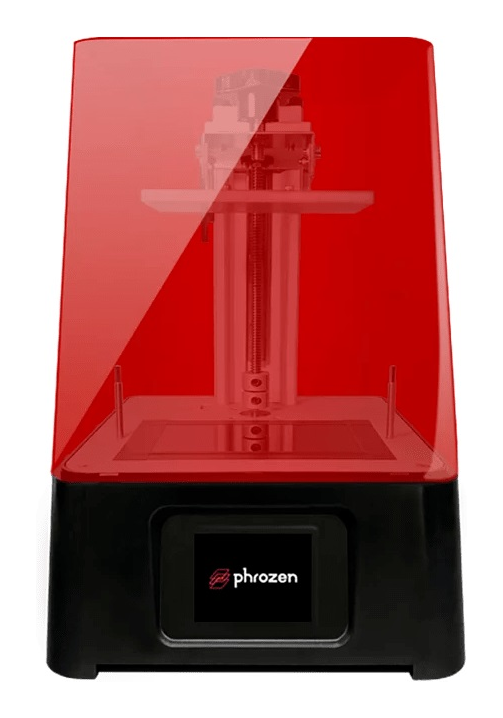

Phrozen Sonic mini 3D printer
Phrozen Sonic Mini is the perfect solution for the home. Miniature photopolymer 3D printer with a budget price. At the same time, the device is equipped with an advanced optical matrix of the new generation ParaLED2.0, which guarantees first-class results and printing speed. The new optical matrix is a patented system that ensures uniform illumination even at the edges of the print area. The luminous flux is characterized by uniformity and almost parallel movement, since the angle of radiation of the LEDs is significantly reduced. Sonic Mini is characterized by a reliable and stable Z-axis, as the device is equipped with a linear single guide and a screw stud. The Mini model differs from the larger Sonic model in its reduced print speed to 50 mm/h and a smaller construction area. At the same time, the accuracy and resolution of printing are preserved and amount to 62 microns. Sonic Mini has an open material system, that is, any photopolymer resins with an illumination wavelength of 405 nm can be used for printing. It takes very little time and minimal effort to start printing; attach the platform, install the bath and upload the file. The delivery set includes a metal bath, which has a service life much longer than its plastic counterparts. Sonic Mini is an ideal solution for educational institutions and beginners in the field of 3D printing.
- Printing technology: LCD
- Supported materials: Photopolymer
- Printing area, mm: 120x68x130
- Layer thickness, microns: 10-100
- Positioning accuracy along the XY axis, µm: 62
- Positioning accuracy along the Z axis, µm: 10
- Light source: ParaLED 2.0 Lite
- UV wavelength, nm: 405
- Printing speed, mm/hour: Up to 50
- Connection interface: USB
- Software: ChiTu Slicer
- Supported file formats: PHZ
- Display: 5.5″ 1080P Touch Panel
- Cooling system: 1 fan
- Power supply: 100-240 V, 50/60 Hz
- Energy consumption, W: 35
- Contents: Phrozen Sonic Mini 3D printer 1 piece; Gloves 2 pcs; Plastic spatula 1 pc; Metal spatula 1 pc; Funnel 1 piece; Hexagon 1 piece; Set of screws 1 piece; Set of spare parts 1 piece; Printing platform 1 piece; Resin bath 1 pc; USB drive 1 pc; Power cable 1 pc.
- Dimensions (without packaging), mm: 250х250х330
- Weight (without packaging), kg: 5
