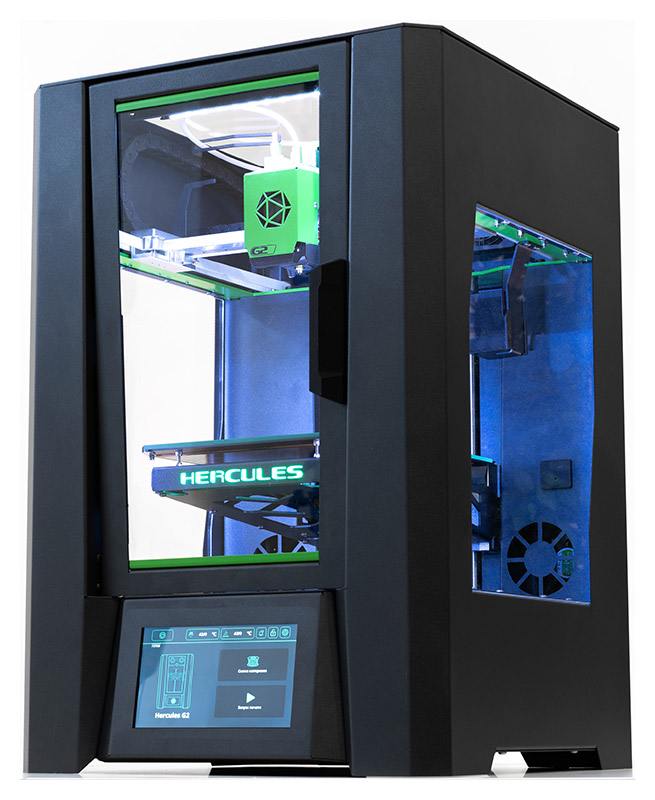

3D printer IMPRINTA Hercules G2
The IMPRINTA Hercules G2 3D printer is an updated model of a device for FDM printing from a Russian manufacturer. The compact printer takes up little space, making it suitable for home and office use. The model has impressive performance. The printing speed of 50 cm³/h for solid materials and 34 cm³/h when working with flexible filaments allows you to quickly reproduce any 3D model. The printer has a high extruder heating temperature - 410 C, which makes it possible to work with almost all existing plastics. A table temperature of 15 C and a closed chamber to maintain a constant high printing temperature allows you to create high-quality products of any material. High printing accuracy is achieved through milled carriages and an improved belt drive system. With a single layer height of just 15 microns, this FDM printer produces high quality parts without visible layers of plastic. For comparison, most printers have a layer height of 50 microns. The updated version of the printer has an improved cooling system, which makes operation more stable. A test from the manufacturer showed the possibility of continuous printing for 5 days. Silent drivers allow you to make work as quiet as possible, so the printer will not annoy your household or colleagues.
- Printing technology: FDM
- Printing material: Plastic
- Supported materials: ABS, ABS/PC, AEROTEX, ASA, CAST, CERAMO, EASY FLEX, ETERNAL, FLEX, Flex Hard, Flex Soft, Formax, FRICTION, HIPS, Nylon, PC, PEEK, PEKK, PET, PETG, PLA, PRO-FLEX, PROTOTYPER SOFT, PVA, RELAX, Rubber, SBS, SBS PRO, SEALANT, Titan GF-12, Total GF-30, TOTAL PRO, TPUA85, TPUD70, ULTEM 1010, UltraX, WAX, etc.
- Print field: 200x200x210
- Thread diameter: 1.75
- Number of print heads: 1
- Layer thickness, microns: 10-900
- Standard nozzle size, mm: 0.5
- Possible replacement nozzles, mm: 0.2, 0.3, 0.5, 0.8, 1, 1.2
- Heating temperature, °C: 410
- Printing performance with flexible materials, cm³: up to 55
- Maximum linear printing speed during normal extrusion, mm/s: up to 125
- Table temperature, °C: 150 (180)
- Cooling model: Double-sided, adjustable
- Hotend type: All metal
- Table plane calibration: Software, automatic, first layer compensation
- Case material: Steel
- Housing type: Closed housing with adjustable forced ventilation
- Offline printing interface: Built-in memory, (*.gcode)
- Operating system: Linux, Mac OS, Windows
- Connection interface: Ethernet, Wi-Fi
- Software type - slicer: Diaprint Cloud & PC
- Supported file formats: .STL, .Gcode
- Supported coil format, mm: For internal placement – 65x200
- Printer control interface: Color capacitive display, 7"
- Remote control: Yes, via Diaprint Cloud
- Print Counter: Yes
- Built-in camera: Yes
- Printer activation: Yes, via Diaprint Cloud
- Printer status notification system: SNOT System
- Plastic presence and supply control system: Sensitive PRO Check
- Printing deformation control system: SolidPrint PRO Check
- Filtration system: Replaceable carbon filter
- Type of guides X,Y: Rail guides HIWIN 12 mm
- Type of guides Z: Cylindrical shafts 16 mm
- X,Y transmission type: H-BOT with 10mm timing belt type HTD3M
- Z gear type: Trapezoidal screw in 8mm pitch
- Positioning accuracy, mm: 0.00125
- Controller: Hercules Control Board based on STM32F406 core 168 MHz, 32-bit
- Stepper motors: XY: Nema 23 2.8A 1.8° 12.6 Kg*cm Z: NEMA17 1.68A 1.8° 4.4Kg*cm Extruder: NEMA11 0.67A 1.8° 1.2Kg*cm (Ratio 5:1)
- Limit sensor type: Optical
- Software: Hercules HOST
- Web version of the software: Yes
- Cloud slicing: Yes
- Start printing without media: Yes, via LAN or Wi-Fi
- Print visualization: Yes, in the management interface
- Operating system: Raspbian Rpi
- Controller firmware: Hercules Firmware v.3
- Mobile phone access: Via Diaprint Cloud
- Printing material filter: Replaceable
- Operating voltage, frequency: 220V±15% 50Hz
- Peak power consumption: 440 W
- Protection against short circuit, overload: 220V fuse (power connector)
- Dimensions, mm: 420x452x616
- Dimensions in packaging, mm: 497х509х750
- Weight, kg: 29.5
- Package weight, kg: 35 kg
