3D equipment and machines

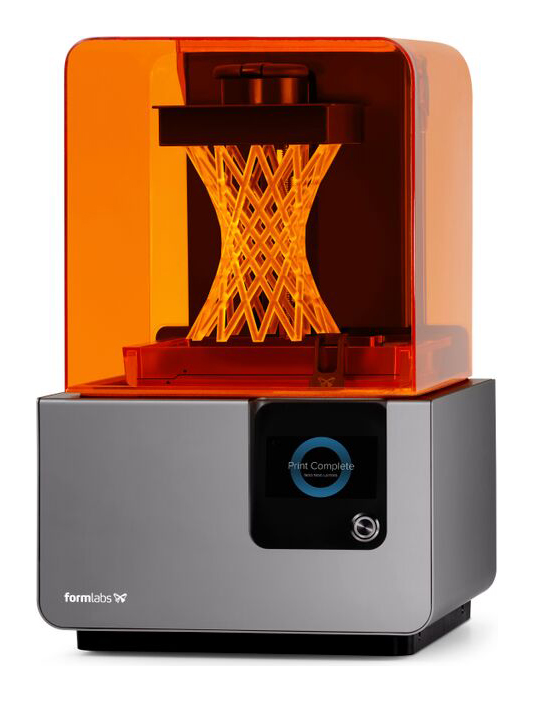

Form 2 3D printer
The Form 2 3D printer uses SLA (stereolithography) technology. 3D printing is carried out under the influence of a laser, which photopolymerizes a thin layer of resin of 25 microns. The printing area has been increased by 40% compared to the Form 1+ 3D printer, a touch screen control and Wi-fi connection have also been added. In terms of 3D printing quality, the Form 2 3D printer is comparable to the most expensive solutions.
Price on request
- Technology: SLA
- Materials: Photopolymer
- Working chamber volume, mm?: 145? 145? 175
- Layer thickness, mm: 0.025, 0.050, 0.100;
- File formats: OBJ STL
- Connection type, interface: Wi-Fi, Ethernet and USB
- Compatible OS: Windows 7 and later, Mac OS X 10.7 and later
- Operating temperature, °C: no more than 35 degrees.
- Housing type: closed with UV protection
- Construction accuracy, microns: 140 (laser spot size)
- Radiation source: Laser, class 1, violet, 405 nm, 250 mW
- Platform type: Construction pallet made of plexiglass and "smart" cartridge
- Platform heating: When using a cartridge, the substrate of the construction platform is heated to 35 degrees. C for optimal polymer consistency and better adhesion
- Additional features: When 3D printing using. of the original cartridge, the material is automatically dispensed, the material is mixed with a built-in spatula, the polymer is heated to 35 degrees C
- System requirements: RAM at least 2 GB
- Software: Pre Form Software (automatic generation of support, alignment, scaling, duplication, orientation in the work chamber)
- Additional information: Possibility of printing with manually fed material from any container, as well as with material in original cartridges. Cartridge capacity 1l.)
- Contents: Cartridge with photopolymer; bath for material; post-processing tool; power cable; USB cable
- Dimensions (WxDxH): 35x33x52 cm.
- Dimensions in packaging: 30x28x45 cm. 18 kg.
- Weight, kg: 13
- Warranty, months: 812
- Energy consumption, W: Power supply: AC voltage 220 V±10%, 50/60 Hz
- Energy consumption, W: 65
