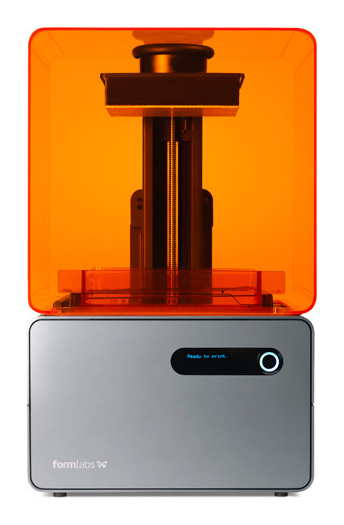

3D printer Form 1+
The Form 1+ 3D printer uses SLA (stereolithography) technology. 3D printing is carried out under the influence of a laser, which photopolymerizes a thin layer of resin of 25 microns. In terms of 3D printing quality, the Form1+ 3D printer is comparable to the most expensive solutions.
Price on request
- Technology: SLA
- Materials: Photopolymer
- Working chamber volume, mm?: 125x125x165
- Layer thickness, mm: 0.025, 0.050, 0.100, 0.200; Minimum wall thickness along the Z axis: 0.4
- File formats: OBJ STL
- Connection type, interface: USB
- Compatible OS: Windows 7 and later, Mac OS X 10.7 and later
- Operating temperature, °C: 18-28
- Housing type: closed with UV protection
- Construction accuracy, microns: 155 (laser spot size)
- Emission source: Laser, class 1, violet, 405 nm, 120 mW
- Platform type: Plexiglas construction pallet
- Platform heating: no
- Additional features: 3D printing accuracy up to 25 microns: display of printing time and progress
- System requirements: RAM at least 2 GB
- Software: Pre Form Software (automatic generation of support, alignment, scaling, duplication, orientation in the work chamber)
- Contents: Cartridge with photopolymer; bath for material; post-processing tool; power cable; USB cable
- Dimensions (WxDxH): 30x28x45 cm
- Weight, kg: 8
- Warranty, months: 12
- Energy consumption, W: Power supply: AC voltage 220 V±10%, 50/60 Hz
- Energy consumption, W: 60
