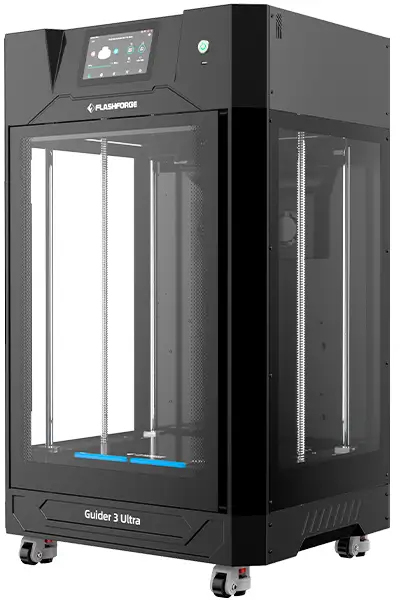

FlashForge Guider 3 Ultra 3D printer
The Flashforge Guider 3 Ultra 3D printer is a professional large-format FDM printer designed for continuous high-speed printing. It provides a large build area, automatic leveling, impressive speed and is built to last. The printer can maintain stable print quality even after 10,000 hours of continuous operation. The device is equipped with a number of functions and features that make it easy to use, including a quick release nozzle, filament detector, power loss recovery and automatic shutdown, dual ventilation system, magnetic platform, HD camera for remote monitoring, HEPA 13 air filtration system, sealed filament drying chamber. The printer provides silent printing. The software supports FlashPrint, Cura and Slic3r slicers, as well as its own cloud platform. With high print speeds, increased accuracy, high temperature capability and stable performance, Guider 3 Ultra is ideal for professional applications in a variety of applications including architecture, art, prototyping and finished products. The printer allows you to adjust the layer thickness from 50 to 400 microns, which provides high quality detail combined with a smooth surface. Automatic leveling ensures positioning accuracy. With dual extruders, Guider 3 Ultra supports the printing of complex models with soluble support materials and effectively realizes the rapid printing of geometrically complex models. An exclusive vibration reduction algorithm compensates for vibration during high-speed printing. The printer has a maximum print speed of 500 mm/s and acceleration of up to 20,000 mm/s², which allows you to quickly print large models. A powerful ventilation system ensures fast and complete cooling of each layer during high-speed printing, ensuring exceptional model formation accuracy. The dual ball screw design and stable platform ensures precise positioning during the entire printing process. Printing at nozzle temperatures up to 350°C and print bed temperatures up to 120°C ensures strong first layer adhesion. The printer supports a wide range of materials, including PLA, ABS, PC, TPE, PETG, ASA, PP, PA, PA-GF and other types of plastics and composites, providing high precision and surface quality. The Flashforge Guider 3 Ultra 3D printer is an open system compatible with third-party materials, making filament choices virtually unlimited. The 3D printer offers a spacious print area with dimensions of 330 x 330 x 600 mm for the single extruder mode and 300 x 330 x 600 mm for the dual extruder mode. With a maximum model height of up to 600 mm, it allows the production of objects of various sizes, including quite large ones, without the need for subsequent gluing. This saves time and improves productivity. Flashforge Guider 3 Ultra features a 7-inch LCD touch screen with an intuitive and well-organized user interface that provides quick and easy access to all printer settings and options. The device supports Wi-Fi and Ethernet connectivity, and also has a USB connector for transferring print tasks from a PC to the printer via a USB drive. Guider 3 Ultra comes with its own FlashPrint slicing software, which has a rich feature set and a user-friendly, updated interface. It can prepare a print job in just a few clicks, ensuring fast, efficient and smooth operation. In addition to a convenient preview function and intelligent path planning algorithm, the program allows you to efficiently manage multiple printers, adjust print settings in real time, automatically repair damaged meshes, create personalized designs, use files from a memory list, and much more. Other compatible slicers for Guider 3 Ultra are the popular software packages Slic3r and Cura.
- Printing Material: Plastic Filament
- Printing technology: FDM/FFF
- Printer body: Closed
- Thread diameter: 1.75mm
- Extruder type: Direct
- Extruder type: Two extruders
- Number of printing nozzles: 2 pcs.
- Extruder temperature: 350°C
- Table temperature: 120°C
- Print area: 330 x 330 x 600 mm
- Printing modes: Two-color, soluble support, combination of 2 materials
- Guides: XY Rails, Z Shafts
- Calibration: Automatic
- Printing/growing speed: 500 mm/s
- Layer thickness: 0.05 - 0.4 mm
- XY axis accuracy: 0.011mm
- Z-axis accuracy: 0.0025 mm
- Full color printing: No
- Number of colors: 2 colors
- Heated table: Yes
- High temperature printing: Yes
- Video camera: Yes
- Forced chamber heating: No
- Plastic control: Yes
- Print Resume System: Yes
- Nozzle: 0.4 mm, 0.6 and 0.8 mm options available
- Supported materials: PLA, PETG, ASA, ABS, PC, PA, PLA-CF, PETG-CF, PETG-GF, PA-CF, PA-GF and others
- Supported file formats: GX, G files, gcode
- Compatible OS: Windows, Mac OS
- Software: Flashprint, Slic3r, Cura
- Delivery set: 3D printer FlashForge Guider 3 Ultra; Power cable; Straight screwdriver x1; Nozzle cleaning tool x1; Scraper x1; Hex Wrench Set x1; Tweezers x1; Grease x2; Brush x1; Glue x1; Fuse x2; Needle nose pliers x1; Diagonal pliers x1; Heat Resistant Gloves x1; Flexible steel sheet x1; Dehumidifier x12; 3D Printing Filament x2; Nozzle set x2
- Connection interface: USB (Flash drive), Ethernet (LAN), Wi-Fi
- Product dimensions: 635 x 550 x 1070 mm
- Package dimensions: 775 x 690 x 1235 mm
- Net weight: 70 kg
- Gross weight: 80 kg
