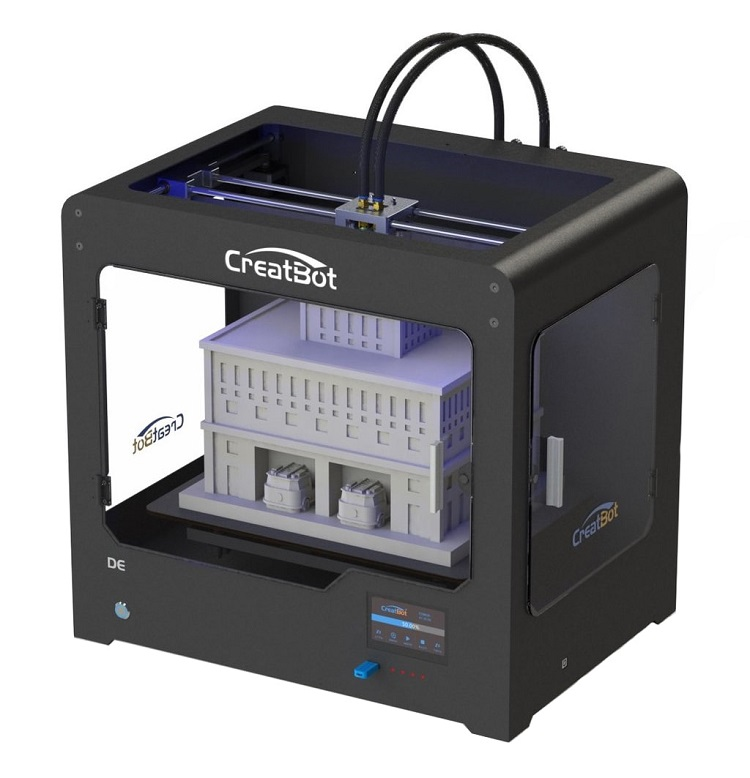

3D printer CreatBot DE
The CreatBot DE 3D printer is a versatile wide-format printer with great potential. In addition to its reliable design, dual extruder, large working area, precision mechanics and powerful functionality, it has the ability to install an extruder with three nozzles at once. This opens up the possibility of creating the most complex models. The printer performs well in manufacturing plants, engineering workshops and educational institutions. The robust dual-nozzle extruder features an all-metal construction and the nozzles are highly adjustable in height. The stepper and hotend are separated, which makes the design lighter, reduces motion inertia and increases accuracy when printing large objects. Thanks to the efficient gear motor, the thread is fed with high precision, and the possibility of delay or slippage is minimized. The maximum hotend temperature is 350 degrees, and the extruder is protected from overheating by an effective cooling system. As standard, the printer is capable of working with the most popular plastics PLA, ABS PETG, and flexible TPU materials, using HIPS and PVA to create soluble supports, printing with engineering plastics Nylon, PC, PP and many others. Thanks to the possibility of replacing the extruder with a triple one, its capabilities expand even further. The printing platform, made of borosilicate glass and heated to 100 degrees, maintains a high level of heat transfer. The printer functionality allows you to set the platform heating to automatically turn off after applying a certain number of layers. Precision mechanics and a rigid metal body that dampens any vibrations provide CreatBot DE with an accuracy of up to 0.05 mm even when printing large objects, and the dimensions of the printing area are 400x300x300 mm. The maximum possible printing speed is 200 mm/s. The wide functionality of the printer makes it very convenient to work with. All electronics are based on a powerful and modern ATmega 2560 chip. In addition to the already mentioned function of automatically turning off the platform heating, the printer has an auto-resume printing function when the power is turned off. It also remembers the progress and pauses printing if the filament runs out. After replacing consumables, printing continues from the same place. For control, the interface familiar to the CreaBot line is used: a 4.3-inch color touch display. With it, you can quickly and conveniently set all the necessary printing parameters. Data can be downloaded either from a computer via USB or using a USB drive.
- Printing technology: FDM
- Printing Material: Plastic Filament
- Thread diameter: 1.75mm
- Printing area: 400x300x300 mm
- Number of printing nozzles: 2 pcs.
- Extruder temperature: 350 °C
- Table temperature: 120 °C
- Printing / growing speed: 10 - 200 mm/s
- Layer thickness: 50 microns
- XY axis accuracy: 12.7 µm
- Z-axis accuracy: 1.25 µm
- Full color printing: No
- High temperature printing: No
- Video camera: No
- Plastic control: Yes
- Print Resume System: Yes
- Supported materials: PLA, ABS, Carbon Fiber, Wood, Nylon, PC, PETG, HIPS, PP, Flexible, TPU, PVA
- Connection interface: USB (Flash drive), USB (Cable)
- Compatible OS: Windows, Mac OS
- DIY (assembly kit): No
- Printer body: Closed
- Dimensions: 590x430x560 mm
- Dimensions in packaging: 720x560x670 mm
- Net weight: 35kg
- Gross weight: 45 kg
