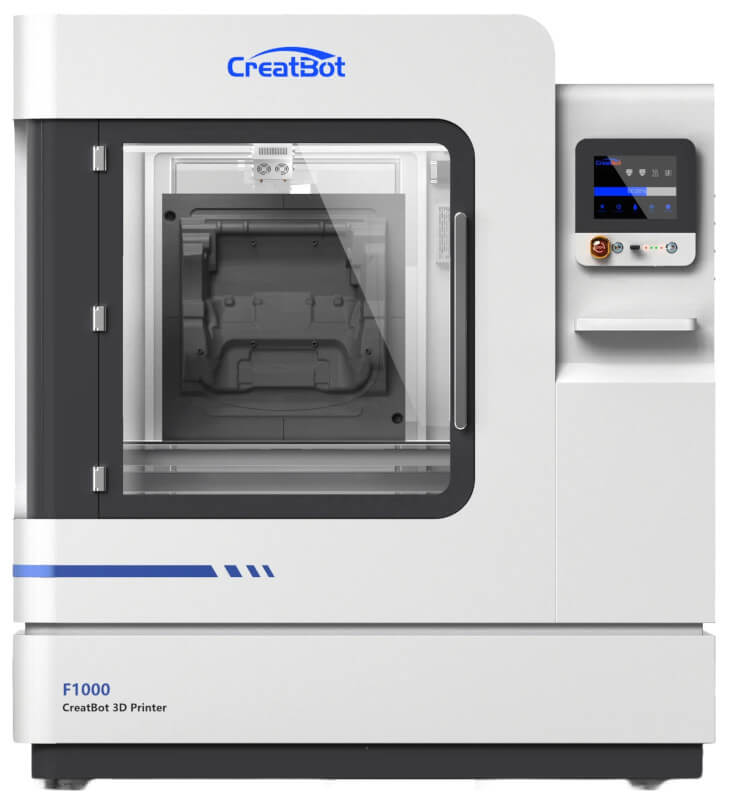

3D printer CreatBot D1000
3D printer CreatBot D1000 is a deep modernization of the F1000 model. With a build area of 1000 x 1000 x 1000 mm, it is the ideal machine for creating large and full-size parts, prototypes, tools, molds. You can have a fully functional, high quality prototype within a few days. Special plastics PLA, ABS, ASA, PA-CF, etc. in large spools are good for larger models without having to worry about constantly replacing filament. The CreatBot D1000 was created to make industrial 3D printing of large-scale objects and prototypes as easy as possible. The D1000's precision linear rail design is very robust. The rails do not deform and do not lose accuracy even after the millionth pass of the print head! Modern servos with reduced noise levels are used for movement. This provides ultra-high performance at high speed. The D1000 integrates a new smart kit: dual extruder with automatic heating temperature increase function up to 420℃. The double heating element is easy to maintain and replace. The extruder is capable of printing not only huge volumes using PLA+, water-soluble PVA material at maximum speed, but also using ABS, PC, nylon, carbon fiber, flexible and high-performance materials. For prototyping on the CreatBot D1000, the UltraPA-CF is the best choice. Using this material, you can produce a large-sized model with high strength of 80 MPa and heat resistance up to 150 °C in just a few days. The 60°C chamber ensures print quality with high performance materials. The completely enclosed chamber blocks all external influences. It also helps reduce noise and at the same time ensure a constant temperature so that the model does not deform. The thread drying compartment provides a chamber temperature of 45°C to 65°C for drying two spools of 5 at once, such as PLA, nylon, PC, ABS and other materials with high water absorption. The printer uses 100 points with a high-precision servo probe to store bed level data during the initial printing phase. There is also intelligent Z-axis table height compensation during the printing process to achieve fully automatic leveling. The filtration system helps to adsorb impurities and gases generated when printing with ABS, nylon, PC. This makes printing safe for the user. The CreatBot D1000 3D printer automatically remembers the current position and saves print data. In the event of a sudden power failure, simply lower the platform and remove the plastic thread. After turning on the power, the printer will continue printing from the last save point. If the filament breaks or runs out, the printer will stop printing. The built-in camera allows you to remotely control the printing process, adjusting speed, temperature, pausing printing, etc. using the application, which allows you to achieve the best print quality in the shortest possible time without failures. A very useful feature for large models and long-term printing.
- Printing Material: Plastic Filament
- Printing technology: FDM/FFF
- DIY (assembly kit): No
- Printer body: Closed
- Thread diameter: 1.75mm
- Extruder type: Direct
- Number of printing nozzles: 2 pcs.
- Extruder temperature: 420 °C
- Table temperature: 100 °C
- Print chamber temperature: 60 °C
- Printing area: 1000x1000x1000 mm
- Calibration: Automatic
- Printing/growing speed: 120 mm/s
- Layer thickness: 50 microns
- XY axis accuracy: 0.011mm
- Z-axis accuracy: 0.0025 mm
- Full color printing: No
- Number of colors: 2 colors
- Heated table: Yes
- High temperature printing: Yes
- Video camera: Yes
- Forced chamber heating: Yes
- Plastic control: Yes
- Print Resume System: Yes
- Nozzle: 0.6 mm (0.3, 0.4, 0.6, 0.8,1.0 mm)
- Built-in 3D scanner: No
- Supported materials: PLA, ABS, Carbon Fiber, Wood, Nylon, PC, PETG, HIPS, PP, Flexible, TPU, PVA, etc.
- Supported file formats: STL, OBJ, AMF
- Compatible OS: Windows, Mac OS
- Software: CreatWare, Simplify 3D, Cura, Slice 3r
- Delivery set: 3D printer Creatbot D1000; BuildTak platform; Intelligent Dual Extruder Kit; High temperature nozzles with a diameter of 1.0 mm; Heating chamber; Full color touch screen; Built-in camera; CreatWare software.
- Connection interface: USB (Cable), Wi-Fi
- Power supply: 220~240 V, 50~60 Hz, Printer: 4000W, Drying point: 4500W
- Product dimensions: 1810x1350x1942 mm
- Packaging dimensions: 1980×1520×2200 mm
- Net weight: 650 kg
- Gross weight: 750 kg
