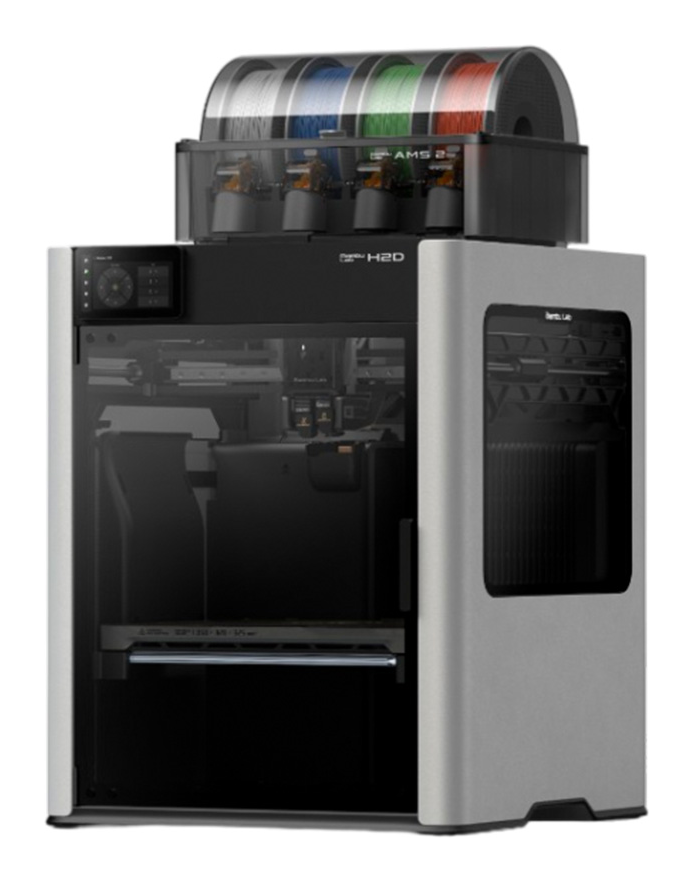

Bambu Lab H2D 3D printer
The Bambu Lab H2D 3D printer opens up endless possibilities for personal production. The 3D printer is available in several configurations - from basic to advanced with a laser module for laser engraving and a module for drawing. All kits except the basic one are equipped with an automatic material supply system Bambu Lab AMS 2 Pro. Printing large projects has never been easier! A chamber with active heating up to 65°C and nozzle temperature up to 350°C provide the most precise control of printing with different plastics. Bambu Lab's proprietary PMSM servo architecture provides intelligent extrusion control. An AI camera with a macro lens located next to the nozzle allows you to constantly monitor the quality of extrusion. If necessary, the printer will send an error report and pause printing. 15 sensors are responsible for the correct supply of filament, which monitor 5 key parameters: feed speed, tension, material location, extruder temperature and extrusion pressure. Before starting work, Bambu Lab H2D performs diagnostics based on several parameters. The printer records the nozzle size, the parameters of the printing platform, and also checks the compliance of the slicer data with the capabilities of the equipment. The manufacturer offers several equipment packages. In addition to the H2D 3D printer itself, the basic package also includes a printing table, a spool holder and a set of accessories. The AMS Combo package includes a basic printer and an AMS 2 Pro unit, which allows you to print up to 4 colors simultaneously. In addition to the material supply system, the AMS Combo 2 also includes green glass for the printer. The H2D AMS Combo 2+Laser is not just a 3D printer. In addition to 3D printing, it allows you to perform laser engraving, cutting and drawing, opening up new creative possibilities. The printer has green protective glass and can be equipped with a 10 W or 40 W laser module. The working area for engraving is 310x270 mm and 310x250 mm, respectively. Bambu Lab H2D AMS Combo 2+Laser supports working with wood, sheet metal, rubber, leather, colored acrylic, stone and others. To protect the eyes from the laser, the model has a special glazing of the working chamber. Also available in Bambu Lab H2D AMS Combo 2+Laser is the cutting and drawing function. The working area for cutting is 300x285 mm. The drawing area is 300x255 mm, while Bambu Lab H2D can use markers or other tools with a diameter of 10.5-12.5 mm. Drawing and cutting are done on paper, vinyl, leather and other similar materials. Basic version, AMS Combo version and AMS Combo 2 are supplied without laser module. The laser module for engraving and cutting is only available in the AMS Combo 2+Laser 10 W and AMS Combo 2+Laser 40 W versions.
- Printing Material: Plastic Filament
- Printing technology: FDM/FFF
- DIY (assembly kit): No
- Printer body: Closed
- Thread diameter: 1.75mm
- Number of printing nozzles: 2 pcs.
- Extruder temperature: 350°C
- Table temperature: 120°C
- Print chamber temperature: 65°C
- Printing area: 350x320x325 mm
- Calibration: Automatic
- Printing / growing speed: up to 1000 mm/s
- Heated table: Yes
- Video camera: Yes
- Forced chamber heating: Yes
- Plastic control: Yes
- Print Resume System: Yes
- Nozzle: 0.4mm, (0.2mm, 0.6mm, 0.8mm optional)
- Supported materials: PLA, PETG, TPU, ABS, ASA, PVA, PET, PA, PC
- Supported file formats: .STL, .OBJ
- Compatible OS: Windows, Mac OS
- Software: Bambu Studio, Bambu Suite, Bambu Handy, Super Slicer, PrusaSlicer, Cura
- Connection interface: Wi-Fi, Bambu-Bus
- Power supply: 100-120 VAC / 200-240 VAC, 50/60 Hz
- Operating environment temperature: 0°C - 35°C
- Product dimensions: 492x514x626 mm
- Packaging dimensions: 620x620x755 mm
- Net weight: 31 kg
- Gross weight: 46.2 kg
