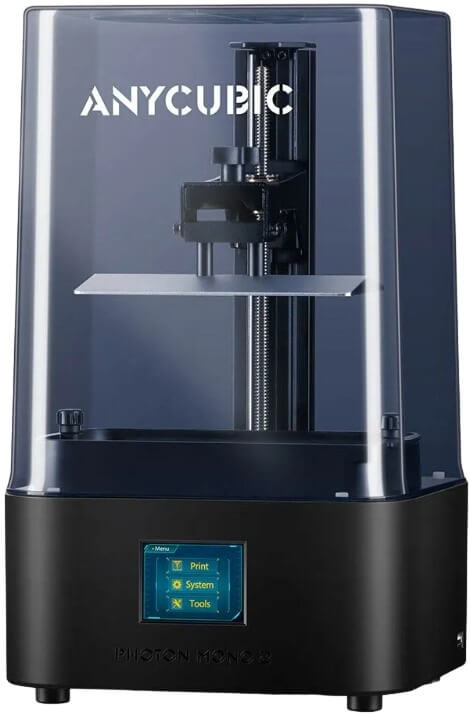

Anycubic Photon Mono 2 3D printer
The Anycubic Photon Mono 2 3D printer is a new product among affordable photopolymer LCD printers. This compact machine with a 6.6-inch monochrome matrix, high printing speed and accuracy is perfect as a home printer or for use in education. The Photon Mono 2 printer is truly compact. With dimensions of 22.9x23.5x39 cm, it weighs only 4 kilograms and will fit on the smallest table. It has a classic Anycubic design with a convenient removable cap that provides reliable UV protection. The 3D printer is equipped with a 6.6-inch diagonal monochrome matrix, which provides a printing resolution of 4098x2560 pixels. An effective parallel source of UV radiation is used for illumination. Double guides ensure the platform moves along the Z axis in 10 micron increments. The platform itself is manually leveled at four points. The maximum printing speed can reach 5cm/h. The Anycubic Photon Mono 2 3D printer has a build area with dimensions of 165x143x89.6 mm and a volume of 2.09 liters. The resin bath has a one-piece design with a convenient measuring scale, and the scratch-resistant FEP film is designed to completely prevent resin from getting onto the matrix. The Anycubic Photon Mono 2 3D printer is equipped with a USB 2.0 port for connecting to a PC and is equipped with a convenient 2.8-inch touchscreen for controlling printing parameters.
- Printing material: Photopolymer resin
- Printing technology: LCD/LED
- Printing area: 165x143x89.6 mm
- Printing/growing speed: 5cm/h
- Z-axis accuracy: 10 µm
- Matrix diagonal: 6.6"
- Matrix type: LCD Mono
- Matrix resolution: 4098x2560 px
- UV wavelength: 405 nm
- Full color printing: No
- Number of colors: 1 color
- Video camera: No
- Built-in 3D scanner: No
- Supported materials: Photopolymer resins 405 nm
- Supported file formats: STL
- Compatible OS: Windows, Mac OS, Linux
- Software: Anycubic Photon Workshop
- Contents: USB drive, filling funnel, gloves, mask, screen protector, build platform, power supply, resin bath, calibration paper, spatula for detaching printed models, tool kit
- Connection interface: USB (Cable)
- Power supply: 48 W
- Product dimensions: 229x235x390 mm
- Packaging dimensions: 300x300x450 mm
- Net weight: 4kg
- Gross weight: 6 kg
