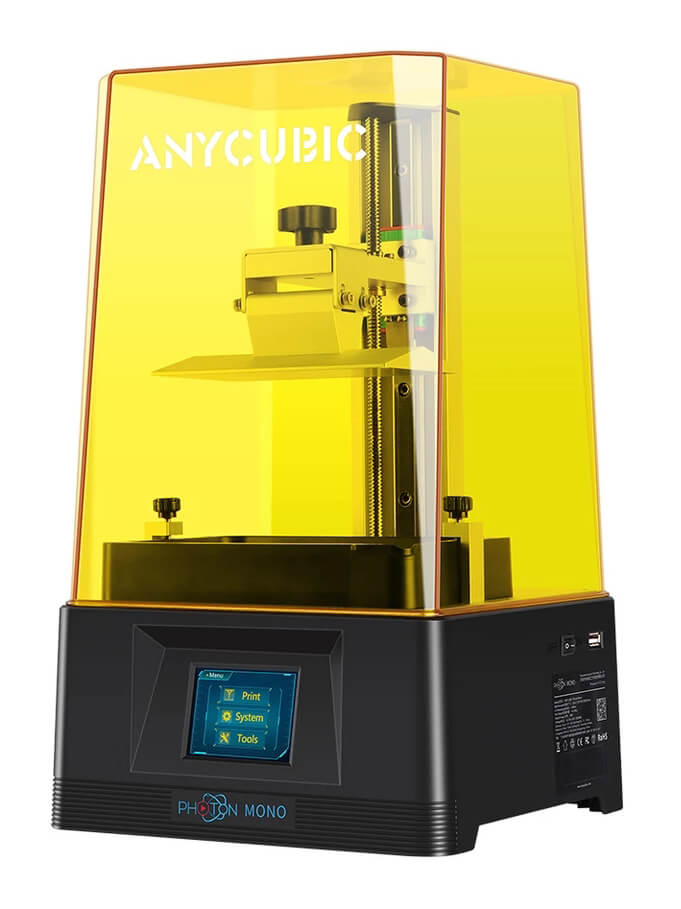

Anycubic Photon Mono 3D printer
The Anycubic Photon Mono 3D printer is a monochrome MSLA printer with a 2K matrix, designed for printing with liquid polymers. Reduced exposure time allows for faster 3D printing. The device is highly accurate. An LCD screen with a resolution of 2560x1620 pixels allows you to print parts with a resolution of up to 51 microns along the X and Y axes. Printing accuracy is achieved through an improved Z-axis design. The 3D printer has a fairly large print area of 130x80x165 mm. A successful solution to position the light source parallel to the working platform ensures uniform sintering of the layers over the entire area of the working surface. The equipment is convenient to use. The ability to quickly replace the FEP film and the function of stopping printing when removing the acrylic cover make work comfortable. The manufacturer paid special attention to the safety of using the printer. The transparent cover allows viewing of the printing process while protecting the user from harmful UV rays. Transferring data for printing is possible via a cable connected to a computer or a USB flash drive.
- Printing technology: SLA
- Printing area: 130x80x165 mm
- XY resolution: 0.051 mm (2560 × 1680 pixels)
- Z positioning accuracy: 0.01 mm
- Layer resolution: 0.01~0.15mm
- Print speed: 50mm/h
- Third party photopolymers: supported
- Material: UV polymer at 405nm
- Recommended slicer: Anycubic Photon Workshop
- Operating systems: Windows, macOS
- File format: STL
- Interface: USB
- Frame dimensions: 227 × 222 × 383 mm
- Rated power: 45 W
- Net weight: 4.5 kg
- Gross weight: 6.5 kg
