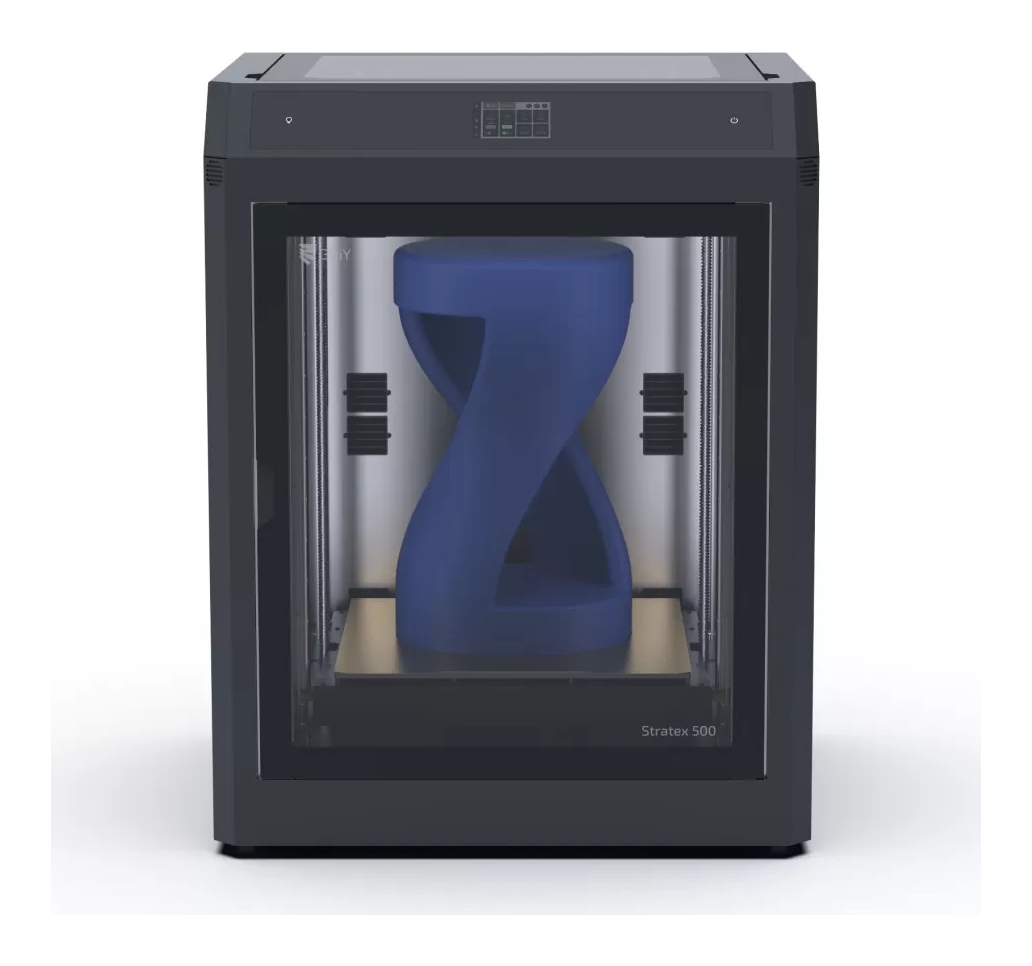

3D printer 3DIY STRATEX 500
The 3DIY STRATEX 500 3D printer is a compact equipment for printing with classic and engineering filaments, suitable for both beginners and professionals. The equipment is capable of printing large and compact products with high detail. This 3D printer, due to its small size, can be placed at home, in an educational institution, in a manufacturing plant, etc. The construction area of the STRATEX 500 printer is 500x500x700 mm, which is enough for the production of large products. The working space of the printer is heated, and the chamber is of a closed type. All this contributes to high print quality. The extruder of a 3D printer can heat up to 410°C. This temperature is sufficient to melt classical and engineering filaments. The printer's print head is cooled by powerful fans, which prevents overheating of the equipment. You can control the printer via a PC using special software, for example, Cura. Or the equipment can print autonomously: the STRATEX 500 has integrated software and also supports reading data from SD memory cards.
- Printing Material: Plastic Filament
- Printing technology: FDM/FFF
- Printer body: Closed
- Thread diameter: 1.75mm
- Number of printing nozzles: 1 pc.
- Extruder temperature: 410°C
- Table temperature: 130°C
- Print chamber temperature: 70°C
- Printing area: 500x500x700 mm
- Guides: Rails
- Printing/growing speed: 160 mm/s
- Layer thickness: 50-350 microns
- XY axis accuracy: 0.011mm
- Z-axis accuracy: 0.125mm
- Full color printing: No
- Number of colors: 1 color
- Heated table: Yes
- High temperature printing: Yes
- Plastic control: Yes
- Print Resume System: Yes
- Supported materials: PLA, ABS, SBS, PVA, FLEX, RUBBER, NYLON, PETg, PC, PP
- Supported file formats: .stl, .obj
- Compatible OS: Windows, Mac OS, Linux
- Software: Repetier Host, Cura, Simplyfy3D
- Delivery set: Cable, USB flash drive, Adhesive, Alcohol and cloth, PEI mat, Plastic, Reel holder, Documents, Thermal barrier, Nozzles, Brush, Tweezers, Key 1, Key 2, Key 3
- Connection interface: USB (Flash drive), USB (Cable)
- Power supply: 220 V
- Product dimensions: 620x650x1050 mm
- Packaging dimensions: 700x700x1100 mm
- Net weight: 45 kg
- Gross weight: 50 kg
